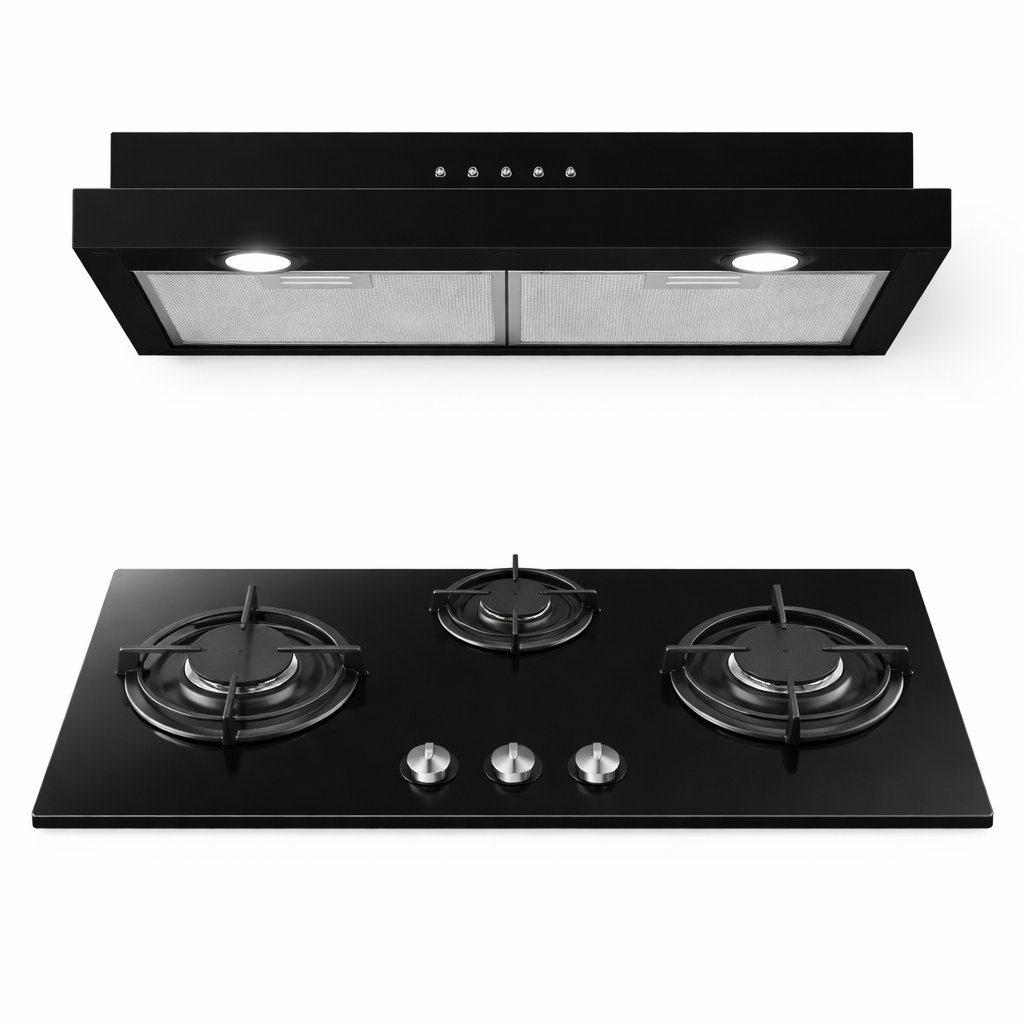

Hood + Hob Set

Hood
Product Size (Size in mm)
900mm length

• Designed for flush ceiling installation — ultra-minimalist look
• Available in 900mm width
• Powerful airflow up to 1200 m³/h
• Constructed with tempered glass body
• Finishes: sleek black paint or galvanized finish
• Equipped with aluminum washable filters
• Features large display finger-touch control panel
• Optional heat auto-clean function
• Optional hand-wave gesture control
• Motor options:
  • Brushless DC motor (1–9 speed) — quieter & more efficient
  • Capacitor AC motor — reliable performance

Hob

Product Size (Size in mm)
870 x 510 x 100

The external dimension of the hob itself — edge to edge, including the glass or metal frame.

Built-in Size (Cut-Out Size / Hole Size in mm)

840 x 480

The hole that needs to be cut in the countertop so the hob can be installed.

Power Output:
• 9.4kW × 2 burners
• 1.8kW × 1 burner

Features:
• Durable tempered glass cooktop
• Heavy-duty cast iron pan supports
• Chinese-style burners with flame failure safety device
• Ergonomic front control panel with bakelite knobs
• Battery-powered auto ignition
